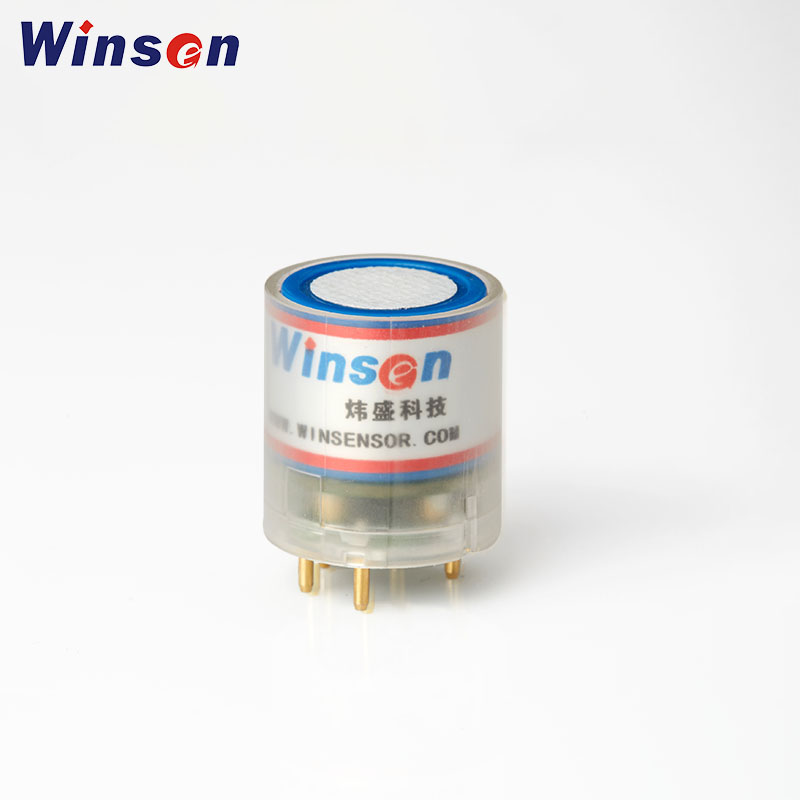

ZE03-SO2 Electrochemical Detection Module

  • • High sensitivity & resolution
  • • Low power consumption
  • • UART and analog voltage output
  • • Good stability and excellent anti-interference ability

We're here to help: Easy ways to get the answers you need.

  • Principle Introduction
Principle Introduction:
ZE03 is a general-purpose and high-performance electrochemical module. It uses three electrodes, electrochemical gas sensor and high-performance micro-processor. By installing different gas sensor, the module could detect relevant gas. It is with built-in temperature sensor to make temperature compensation, which makes it could detect the gas concentration accurately. It has the digital output and analog voltage output at the same time which facilities the usage and calibration and shorten the development period. It is a combination of mature electrochemical detection principle and sophisticated circuit design, to meet customers’ different detection needs.
Applications :
 Portable and fixed gas detector, various gas detection equipment and occasion.
Technical parameters :

Tips:For more parameter information, please refer to the latest manual provided by salesman.



Model No.

ZE03

Target Gas

CO, O2, NH3, H2S, NO2, O3, SO2, CL2, HF, H2, PH3, HCL etc

Measurement Range

Refer stable 2.(can be customized also)

Working Voltage

DC5±0.1V

Working Current

<5 mA

Output Data

UART Output (TTL electrical level,3V)

Analog Voltage(refer stable2. for sensor original amplifying signal)

Working Life

2 years

Operating Environment

Temp.:-20~50℃

Humidity.:15%-90%RH(no condensation)

Storage Environment

Temp.:-20~50℃

Hum.:15%RH-90%RH

Size

ø23.5mm*24.5mm

Reference Circuit :
