Principle Introduction:
Winsen Electronics, professional gas sensing solution provider, produces ethylene gas sensor, C2H4 sensor for industrial and fruit ripening use.
ME3-C2H4 electrochemical gas sensor make use of electrochemical oxidation process on the working electrode in electrolytic cell. And the current produced in electrochemical reaction is in direct proportion to concentration while following Faraday law. So that concentration of target gas can be tested by current

Applications :

Detecting ethylene in industry and environmental protection field

Technical parameters :

Tips:For more parameter information, please refer to the latest manual provided by salesman.

Model	ME3-C2H4
Detection gas	C2H4, ethylene sensor
Detection range	0-100ppm
Max. range	200ppm
Sensitivity	0.04±0.012 uA/ppm
Filter	Filtering SOX/NOX and H2S
Resolution	0.5ppm
Tem. range	-20°C-50°C
Pressure range	standard atmosphere ±10%
Response time(T90)	<30S
Humidity range	15%—90%RH
Bias voltage	no
Reproducibility	1% of signal output
output	Linearity output
Anticipated using life	3 years in air

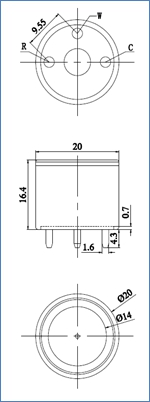

External dimension:

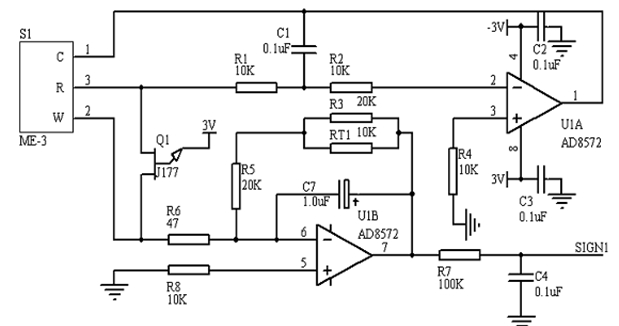

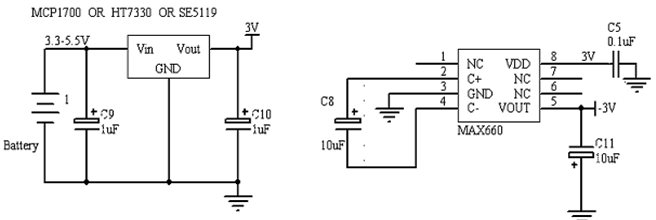

Reference Circuit :
