| Target: | Refrigerant gas R290 |
| Model: | ZP211 |
| Detection principle: | Module，semiconductor |
| Characteristics: | High sensitivity,fast response,strong anti-interference ability |
| Size: | 25×34×14.1mm（L×W×H） |
ZP211 Manual download
Get Price Whatsapp
Description

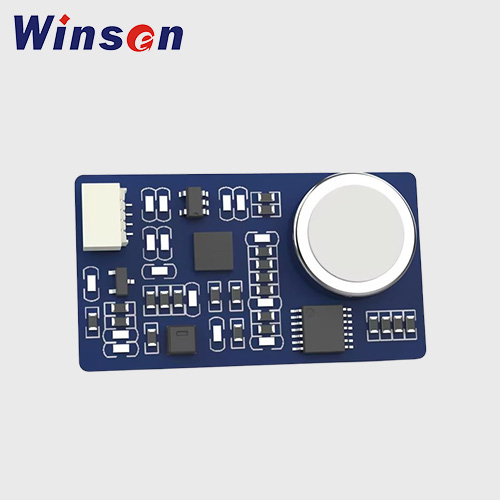

ZP211 refrigerant gas detection module adopts advanced multi-layer thick film manufacturing process semiconductor gas sensor element. The gas sensor element contains a filter adsorption layer to reduce the interference of alcohol and other gases, and has extremely high sensitivity to refrigerant gas R290. The module has been aged , calibration, calibration, with good consistency and high sensitivity.
Application
Used for air conditioning, refrigeration system refrigerant leak detection.
Features
- High sensitivity
- Fast response
- Strong anti-interference ability
- Long life
- Stable operation
- Factory calibrated
- Sensor fault self-diagnosis
Specifications
| Model | ZP211 |
| Target Gas | Refrigerant gas R290 |
| Physical interface | S05B-PASK-2 |
| Output Data | PWM |
| Working Voltage | 5.0±0.2V DC (No voltage reverse connect protection) |
| Working Current | ≤80mA |
| Warm Up Time | ≤3 min |
| · Recovery time | ≤120s |
| Set alarm concentration | 2000ppm |
| Initial alarm accuracy | 1340～2660ppm |
| Operating Temperature | -20～55℃ |
| Operating Humidity | ≤95％RH |
| Storage Temperature | -20～60℃ |
| Storage Humidity | ≤60％RH |
| Size | 25×34×14.1mm（L×W×H） |
| Weight | 5g |
* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.
Technical Support:
Customized technical design and function, LOGO and package are available without extra charge (including molding fee) for mass volume.
The sensors don't have sleeping mode. It can be set in program if needed.
All Winsen products go through strict inspections and tests to make sure they are 100% qualified before shipping out.
The sensor has been fully tested (not calibrated) before leaving the factory, but the module will be calibrated before leaving the factory.
However, after transportation and storage, the environment conditions change, and the surface of the sensor absorbs moisture, mixed gas, pollution matters, etc. It is recommended that customers perform aging and calibration after sensors become stable according to the program and use occasions of the whole device.
15﹪-90﹪RH without condensation,greater or less than this range or long-term high temperature and high humidity will affect the life of the sensor.
Our sensors are certified with CE, 3C, ROHS, anti-explosion, fire prevention, and coal mining safety according to different applications. And we provide assistance for new certification.
Many factors can cause the sensor to fail such as broken wires in transportation, poisoning, falling off of the sensitive material, damage to the heating wire (device), etc. Please find specific cause in each category with Winsen’s aftersales.
